Metrology

Metro North Machine & Design Inc. provides part inspection as a stand-alone service to the manufacturing industry as well as ensuring the quality of our own in-house manufacturing.

The cornerstones of the quality control program are a trio of CMMs. Supported by in-house programming capability using the latest PC-DMIS solids based CMM inspection software allows the flexibility to quickly program and inspect rush parts with ease. Maintained and calibrated annually these CMMs are an invaluable resource to our customers.

Our climate controlled inspection area is also equipped with a host of manual inspection equipment and a full complement of calibrated micrometers and gauges. All manufacturing areas are also equipped with granite surface plates and dedicated gauges as required to allow full wireless digital collection and recording of part dimensions. These records are maintained on our servers or forwarded to our customers as required to meet control plan requirements.



Automated

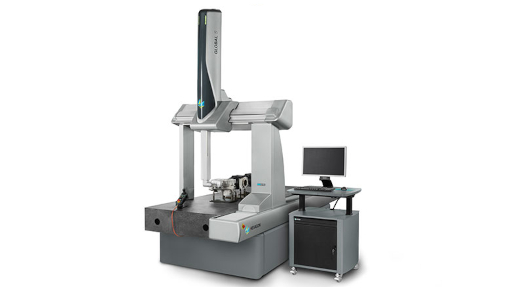

Hexagon Global S Green

High accuracy scanning head.
2.5 degree indexable head.
Probe changer rack.
High Definition Inspection Camera.
PUSLE environmental monitoring.

Learn more

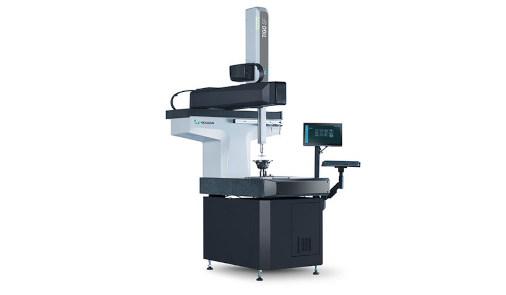

Hexagon TIGO SF

High accuracy scanning head.
Probe changer rack.
High Definition Inspection Camera.
PUSLE environmental monitoring.

Learn more

Mitutoyo Bright 504

Adaptable of touch trigger modules.
Robust 5 degree indexable head.
Parametric programming via MCOSMOS.

Mahr MarShaft Scope 250 Plus

Flexible optical shaft measuring machine for measuring small, rotationally symmetrical workpieces.

Mahr MarSurf XR1

Top of class surface metrology solution.
Ra or Rz with R, P, or W profiles.
ISO/JIS or MOTIF (ISO 12085).
PC Data Logging.

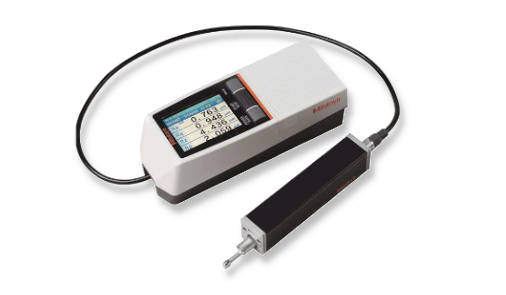

Mitutoyo SJ210 (x3)

Surface metrology solution.
Ra or Rz measurments.
PC Data Logging.

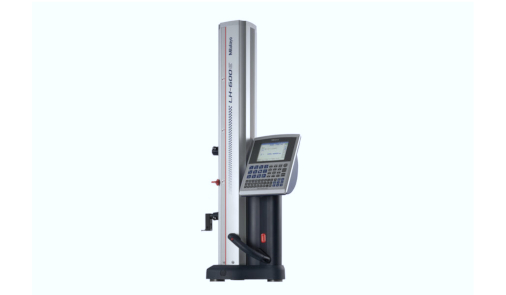

Mitutoyo LH-600E

High accuracy 2D digital height measuring.

Learn more

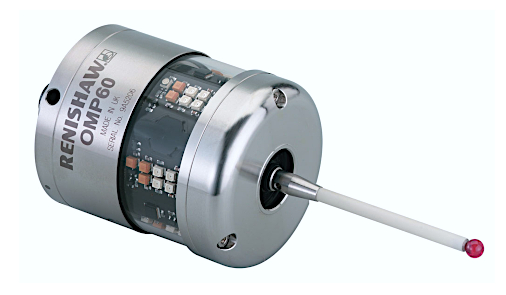

Renishaw On Machine Probing (x4)

In process inspection, toolpath modification, and data collection for high production components.

Manual

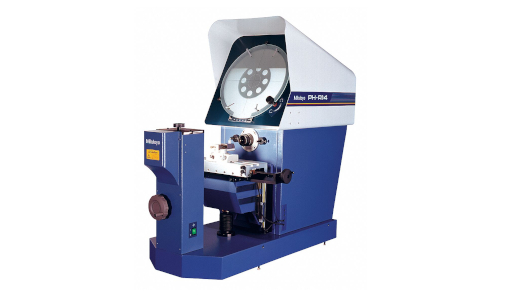

Mitutoyo PH-R14

High accuracy horizontal beam projector.

Learn more

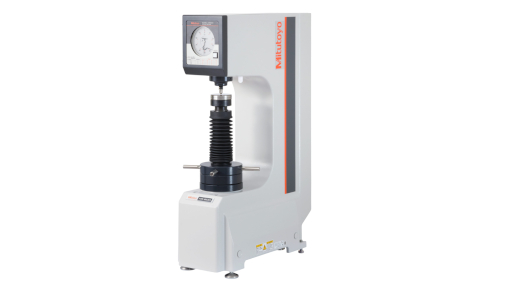

Mitutoyo HR-100

High accuracy Rockwell hardness tester.
